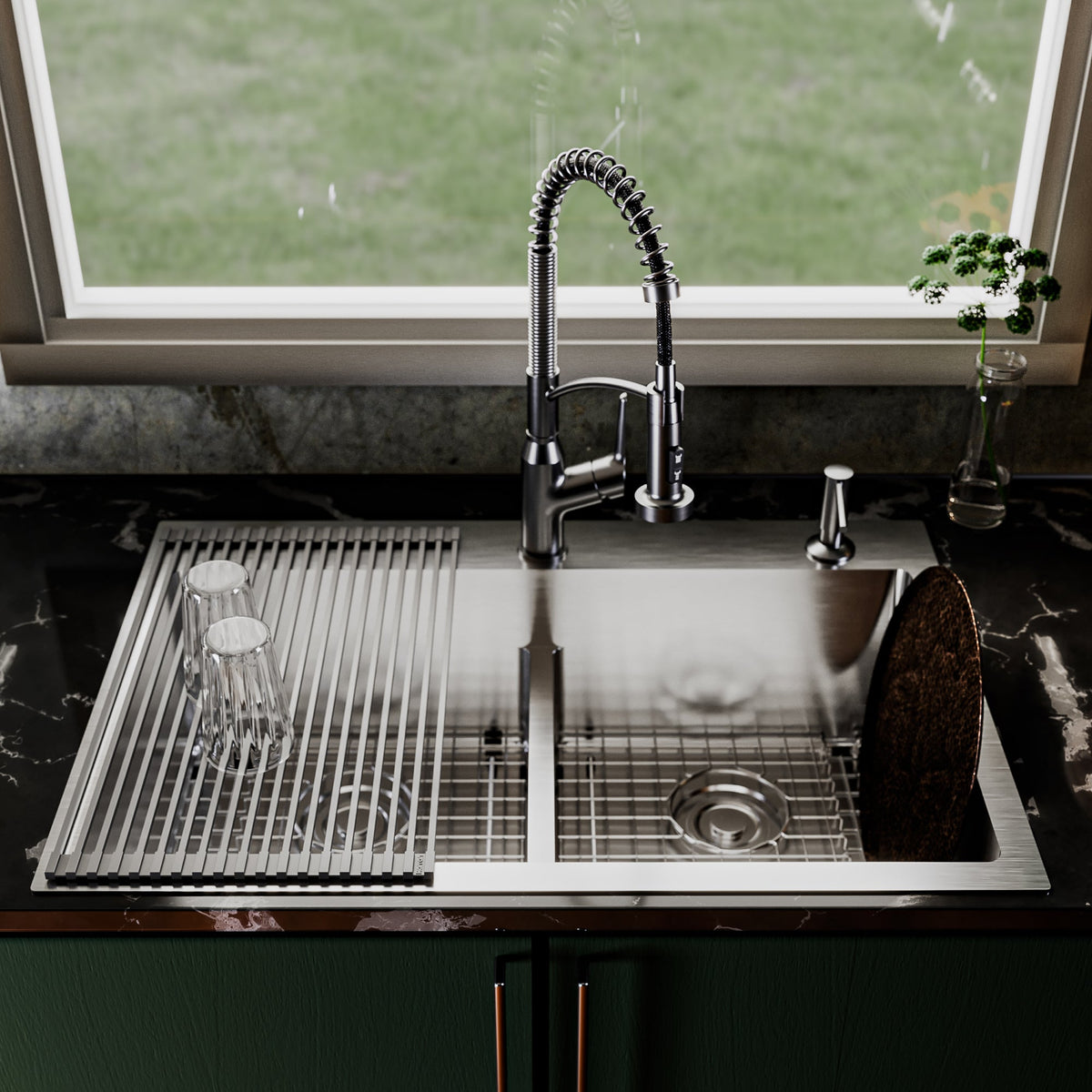

Stainless Steel Double Bowl Top Mount 16ga Sink 33"

A 33" double bowl top mount (drop-in) kitchen sink. It's made from 16-gauge Type 304 stainless steel with a satin brushed finish, and it fits a 36" or wider sink base cabinet.

Specifications

What's in the box

• Sink
• Stainless steel bottom grid (GR-4003L). It protects the bowl floor from pots and dropped utensils and lets water drain underneath.
• Stainless steel bottom grid (GR-4003R). It protects the bowl floor from pots and dropped utensils and lets water drain underneath.
• 2 basket strainers (L-3)
• Roll-up drying rack (DR2113DGR5)
• Mounting clips
• Cutout template

Will it fit my kitchen?

• Cabinet: you need a 36" or wider sink base. Measure the inside of the cabinet, wall to wall.
• Countertop: it's a drop-in sink. The rim sits on top of the counter, so it works with laminate as well as stone, solid surface and wood.
• Replacing a sink? Measure your existing cutout. This sink has to cover it completely, and the cutout has to be smaller than the rim. The DXF file below gives the exact cutout.
• Counter depth: the sink is 22" front to back. Make sure there's still room for the faucet behind it.
• Plumbing: the drain is at the rear of the bowl, which leaves more open storage under the sink.

Downloads

• Spec sheet (PDF)
• Cutout template (DXF, for your fabricator)
• Installation guide (PDF)
• Care and cleaning (PDF)

Add-ons

• Extra or replacement stainless steel bottom grid, basket strainer or roll-up drying rack: ask us and we'll order the right size for this sink.

Questions we hear a lot

Does it come with a bottom grid? Yes, one for each bowl.

Does it come with a faucet? No. Use one hole for a single-hole faucet and the other for a soap dispenser or filtered-water tap.

How thick is the steel? 16 gauge. That's thicker than the common 18-gauge sink, so it resists dents better.
