Stainless Steel Bar/Prep Bowl Undermount Workstation Sink 15"

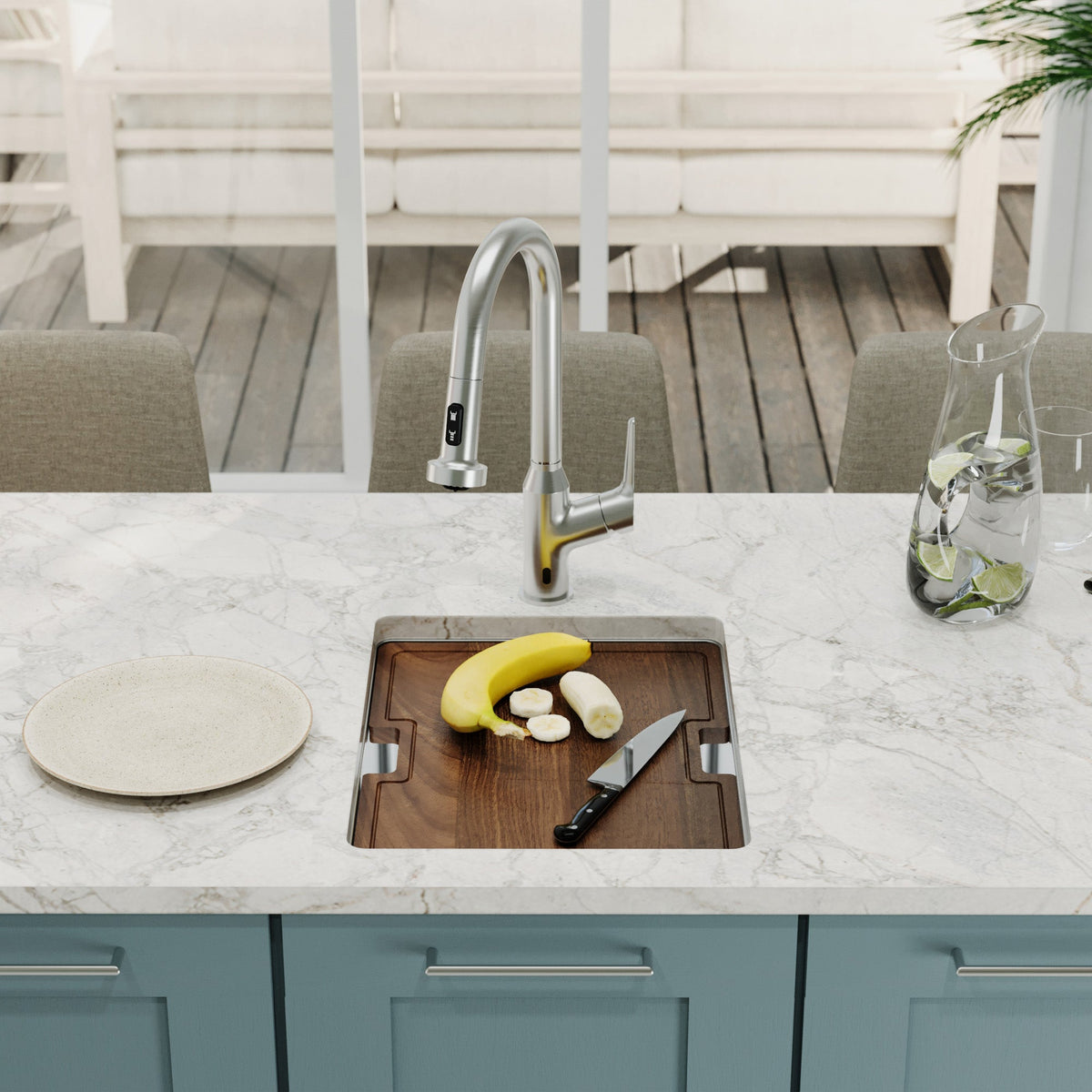

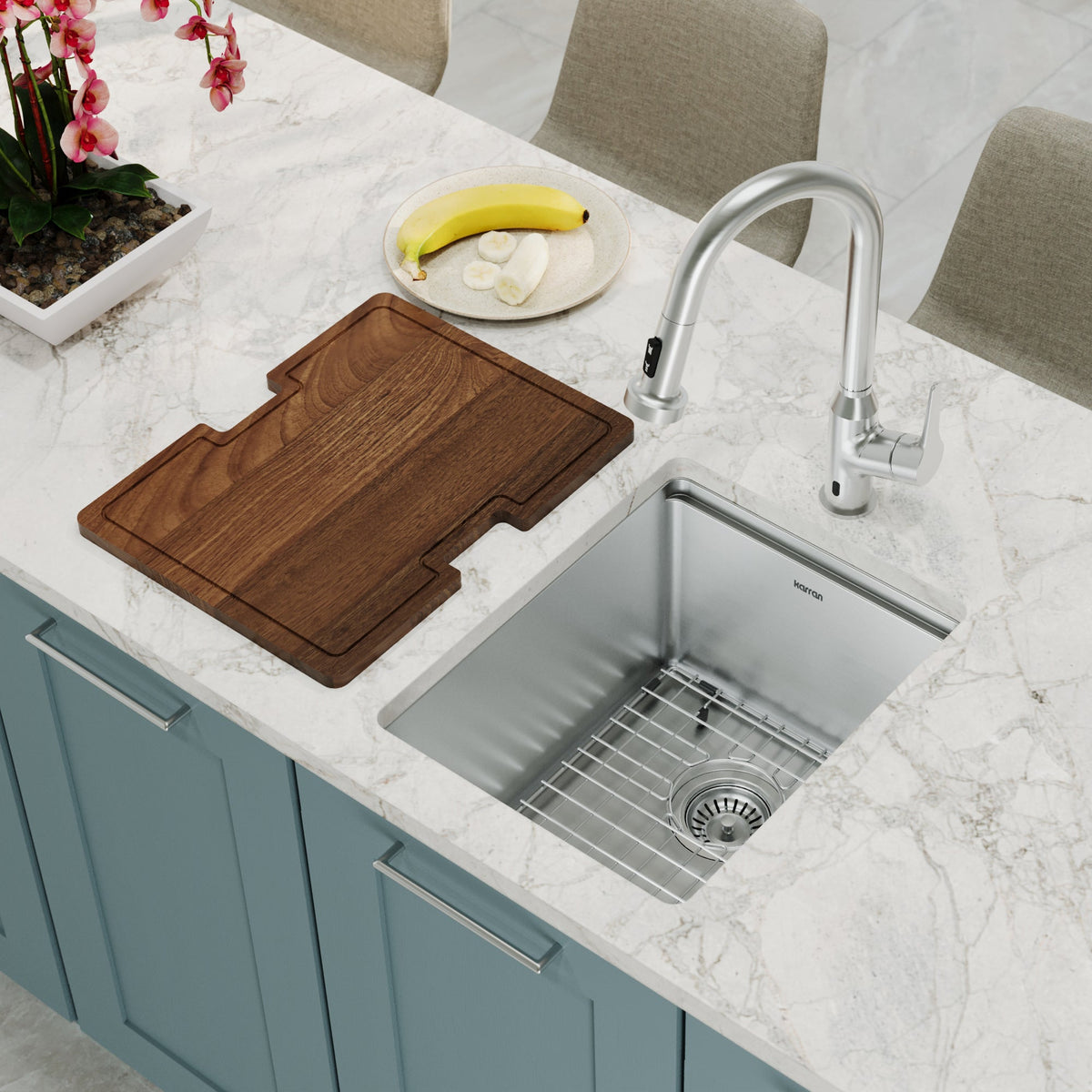

A compact 15" undermount bar and prep sink built as a workstation. A ledge runs along the top of the bowl, so the included cutting board slides across it and gives you a prep surface right over the sink. It's made from 16-gauge Type 304 stainless steel with a satin brushed finish, and it fits an 18" sink base cabinet.

Specifications

Overall size	15" W x 18-3/4" front to back x 10" deep
Bowl size	13" x 16" x 9-3/4" deep
Material	16-gauge Type 304 stainless steel
Finish	Satin brushed stainless
Installation	Undermount
Bowl	Single bowl
Corner radius	5/8" (15 mm) inside corners for easy cleaning
Drain	3-1/2" opening, rear of the bowl
Faucet holes	None. The faucet mounts in the countertop.
Minimum cabinet	18" sink base
Mounting clips	Included
Cutout template	Included in the box (DXF file below)

What's in the box

• Sink
• Wood cutting board, sized for the ledge (CB1713SW)
• Stainless steel bottom grid (GR-3244). It protects the bowl floor from pots and dropped utensils and lets water drain underneath.
• 3-1/2" basket strainer (L-1)
• Undermount mounting clips
• Cutout template

Will it fit my kitchen?

• Cabinet: you need an 18" or wider sink base. Measure the inside of the cabinet, wall to wall.
• Counter depth: the sink is 18-3/4" front to back. Make sure there's still room for the faucet behind it, especially on a narrow bar top or island.
• Countertop: it's undermount, so it needs a solid countertop such as granite, quartz, or solid surface. It won't work under laminate.
• Cutout: your fabricator cuts the counter from the template in the box or from the DXF file below. The overall size is not the cutout size, so don't cut to 15" x 18-3/4".
• Plumbing: the drain is at the rear of the bowl, which leaves more open storage under the sink.

Downloads

• Spec sheet (PDF)
• Cutout template (DXF, for your fabricator)
• Installation guide (PDF)
• Care and cleaning (PDF)

Add-ons

• Spare 3-1/2" basket strainer (L-1). One comes with the sink.
• Extra cutting boards, a roll-up drying rack, or a replacement bottom grid: ask us and we'll order the right size for this sink.

Questions we hear a lot

Does it come with a bottom grid? Yes, one is included.

Does it come with a faucet? No. Any single-hole or widespread faucet that mounts in the countertop will work. It doesn't need to match the sink brand.

How thick is the steel? 16 gauge. That's thicker than the common 18-gauge sink, so it resists dents better.

Can I get it in black? Yes. The same sink comes in Gunmetal Black, with matching black accessories.
