Karran
Stainless Steel Bar/Prep Bowl Undermount Sink 16-1/2"
Stainless Steel Bar/Prep Bowl Undermount Sink 16-1/2"
Regular price
$257.85 USD
Regular price
Sale price
$257.85 USD
Unit price
$257.85 each
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
A 16-1/2" single bowl undermount kitchen sink. It's made from 16-gauge Type 304 stainless steel with a satin brushed finish, and check the spec sheet for your package for the minimum sink base cabinet size.
Specifications
| Overall size | 16-1/2" x 18" x 9-1/2" (W x front to back x deep) |
| Bowl size | 14-1/2" x 16" x 9-1/2" |
| Material | 16-gauge Type 304 stainless steel |
| Finish | Soft satin brushed stainless |
| Installation | Undermount |
| Bowls | Single bowl |
| Inside corners | 5/8" radius |
| Drain | 3-1/2" opening, rear |
| Faucet holes | None. The faucet mounts in the countertop. |
| Minimum cabinet | See the spec sheet for your package |
| Mounting clips | Included |
| Cutout template | Included in the box (DXF file below) |
| Sound control | Sound-dampening pads on the underside |
What's in the box
This sink comes in 2 packages. Pick the one you want from the options above.
Bar/prep bowl undermount (SU71)
- Sink
- Undermount mounting clips
- Cutout template

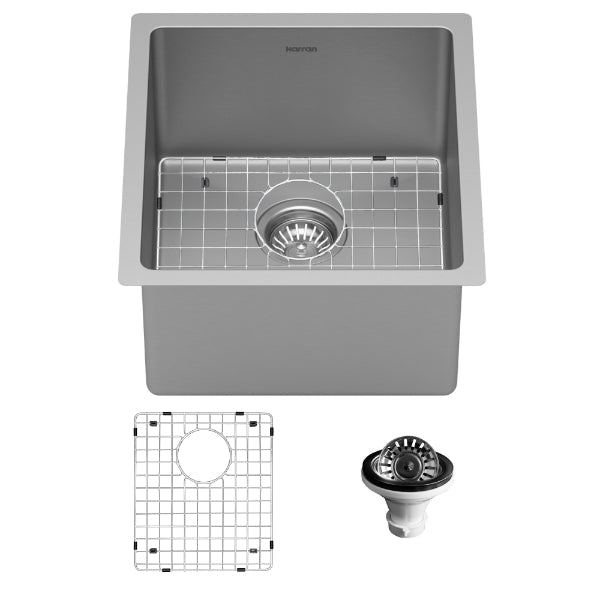

Bar/prep bowl undermount + accessories (SU71-PK1)
- Sink
- Stainless steel bottom grid (GR-3020). It protects the bowl floor from pots and dropped utensils and lets water drain underneath.
- Basket strainer (L-1)
- Undermount mounting clips
- Cutout template
Will it fit my kitchen?
- Cabinet: check the spec sheet for your package for the minimum sink base size. Measure the inside of the cabinet, wall to wall.
- Countertop: it's an undermount sink, so it needs a solid countertop such as granite, quartz or solid surface. It won't work under laminate.
- Cutout: your fabricator cuts the counter from the template in the box or the DXF file below. The overall size is not the cutout size, so don't cut to 16-1/2" x 18".
- Counter depth: the sink is 18" front to back. Make sure there's still room for the faucet behind it, especially on a narrow bar top or island.
- Plumbing: the drain is at the rear of the bowl, which leaves more open storage under the sink.
Downloads
- Spec sheets (PDF): SU71, SU71-PK1
- Cutout template (DXF, for your fabricator)
- Installation guide (PDF)
- Care and cleaning (PDF)
Add-ons
- Stainless Steel Bottom Grid 13" (GR-3020). It comes in some of the packages, not all.
- Stainless Steel Basket Strainer 3-1/2" (L-1). It comes in some of the packages, not all.
Questions we hear a lot
Does it come with a bottom grid? Only in some packages. Check the list above for the one you pick.
Does it come with a faucet? No. Any faucet that mounts in the countertop will work. It doesn't need to match the sink brand.
How thick is the steel? 16 gauge. That's thicker than the common 18-gauge sink, so it resists dents better.
