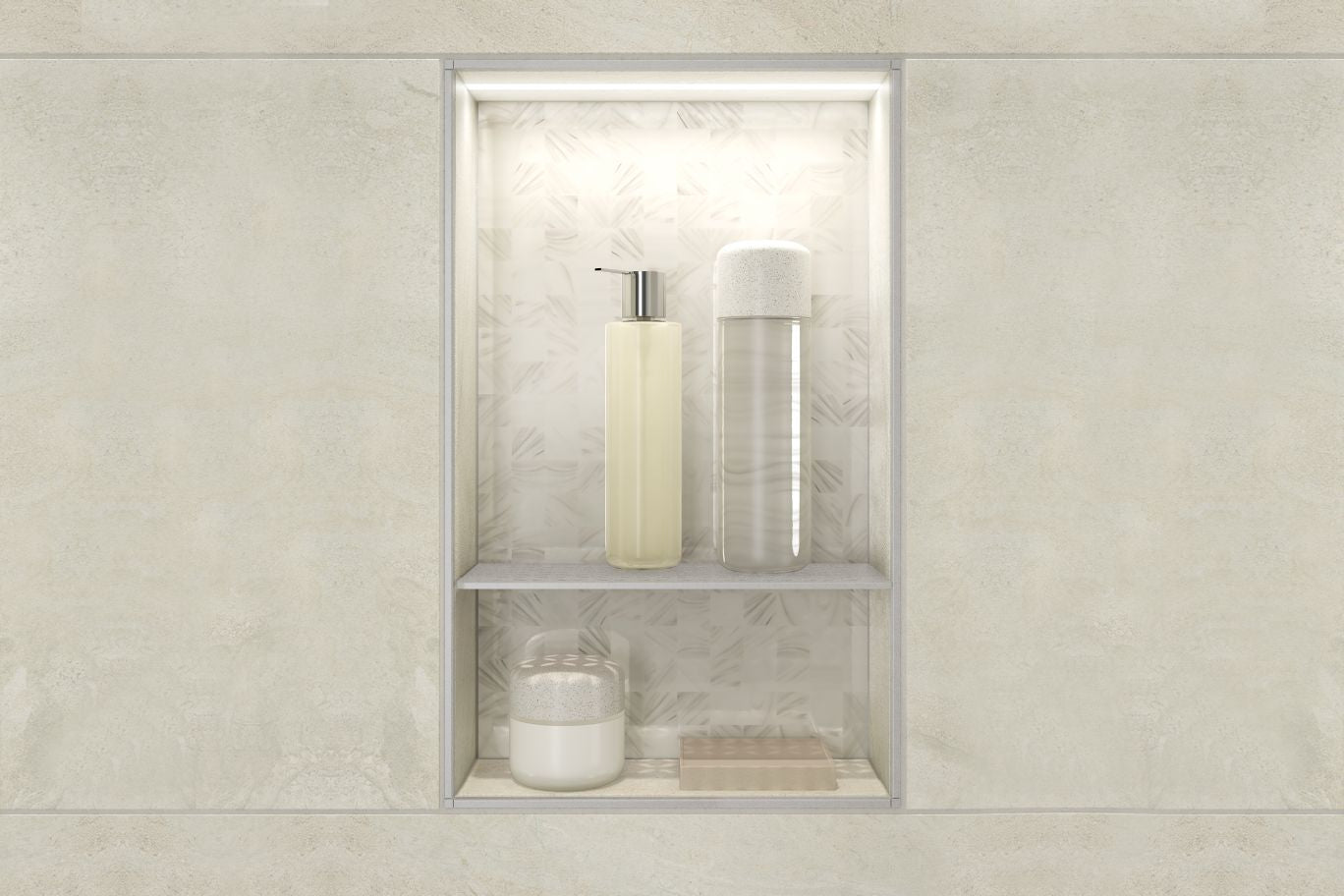

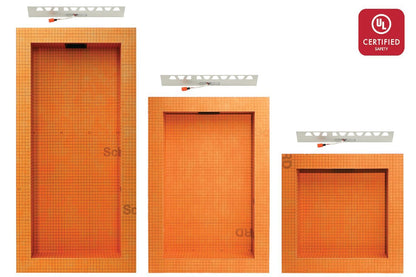

Prefabricated shower niche that incorporates a mounting profile with a diffused LED light strip. It features a pre-installed waterproof connection box to ensure the electrical connection is code-compliant. Lighted Niche can be installed in both topical and waterproof board wall assemblies. The shower niche features a 1/2" (12.5 mm) -thick by 2" (50 mm) -wide integrated bonding flange and is available in 12" x 12", 12" x 20", and 12" x 28" sizes and is designed for a vertical installation.
The mounting profile is made of anodized aluminum with matte finish. It is 11.8" long to fit along the top of the niche and features a cut out designed to pass the cable through. The LED light strip is encased in a silicone tube that provides an evenly diffused line of light and nests into the mounting profile. The LED emits a warm white light measuring 3000K, with a brightness of 118 lumens.
The niche includes a stainless steel connection box and cover which are inserted into the waterproofed and factory assembled plastic connection box, ensuring a code-compliant LED system. Also included is a self-adhesive waterproof patch used for proper thin-set mortar adhesion and to prevent mortar from entering the connection box. It is not intended for waterproofing.
